BS-015 manual electric strip machinery for wire stripping machine
1 . BS-015 Manual Wire Stripper Machine Introduce :
This model are easy to operate, convenient to carry, energy saving, for single copper wire(hard wires) can be rolled or blades stripping, other cables(soft wires) can be easily stripped.
Size: L51.5 X W 16 X H29
Weight: 22.2KG
1: check the machine before using, in case of sth inner the machine to broke blades.
2: to extend the blades life, u need to cut the cable joint when feeding.
3: if the cable out with deep scratch or filament sever, u should notice :

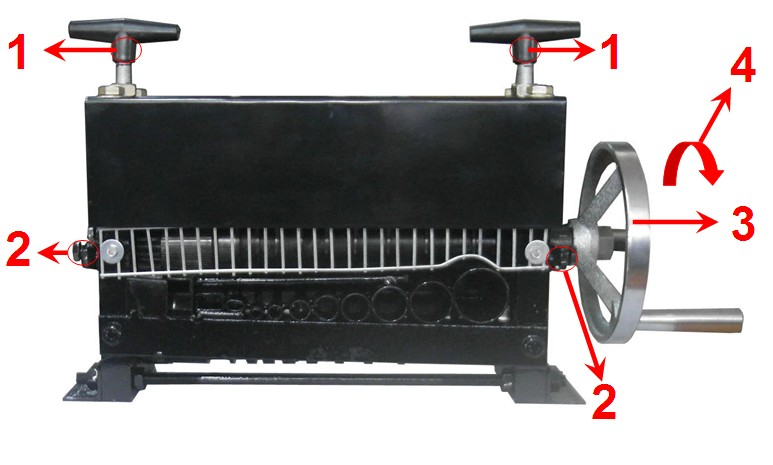

1) should adjust the M12 screw hand crank pressure of the blades axis
2)check the right cable position
3) check the blades
4)if scratch spread in insulation layer in line, but the insulation layer remain the same,
Solution for differnet following situation:
1:the cable diameter is too small.
2: hand crank is loosen
5:if the blades off tracking or cable stripped not in sequence
1: check whether the center regulator is loosen or not
2: adjust 2 sides blades center regulator, make blades center is in line with the groove center.
1: check the machine before using, in case of sth inner the machine to broke blades.
2: to extend the blades life, u need to cut the cable joint when feeding.
3: if the cable out with deep scratch or filament sever, u should notice :
1: should adjust the M12 screw hand crank pressure of the blades axis
2:check the right cable position
3: check the blades
4:if scratch spread in insulation layer in line, but the insulation layer remain the same,
Have the following situation:
1:the cable diameter is too small.
2: hand crank is loosen
5:if the blades off tracking or cable stripped not in sequence
1: check whether the center regulator is loosen or not
2: adjust 2 sides blades center regulator, make blades center is in line with the groove center.
